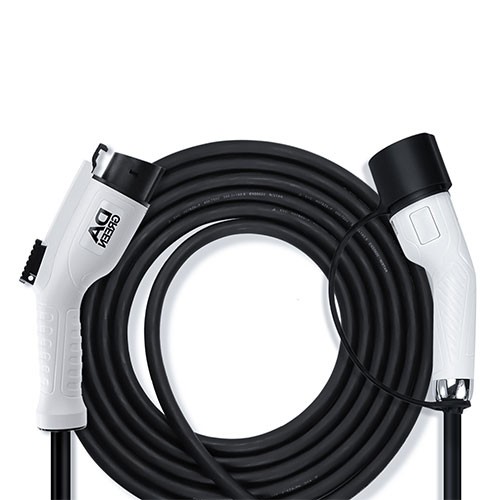

PVGREEN SOLAR ev charger cable 5m IEC62196 ev charger plug portable type 2 to type 1 ev charging cable 32a

Describe:

OEM/ODM PVGREEN SOLAR 16A 32A 1 3 Phase Ev Charger Mode Level 3 Electric Ev Charging Cable Car Type 2 Type 1 To Type 2 Ev Charging Cable

1. 3.6kw, 7.2kw ,11kw, 22kw with 5m black white cable, or customized

2. Higher safety level, support outdoor using

3. Authoritatively certificated from CE, CCC, ROHS and so on

4. 1-year warranty for after-sale service

5. Customized service on LOGO, length, color and inner box

Rated Current16A32A

Cable Sections:3X2.5mm＾2+2x0.5mm＾2  /& 3X6mm＾2+2x0.5mm＾2

Rated voltage；240V-480

Insulation resistance>1000MΩ(DC500V)

Pins temperature rise：<50K

Withstand voltage;2000V

Contact impedance；0.5mΩMax

Operating temperature;-30C-+50C

Color options：orange, blue, green, grey, white, custom color

Cable Length：5m, 7m, 10m or customized

Protection grade：IP55
